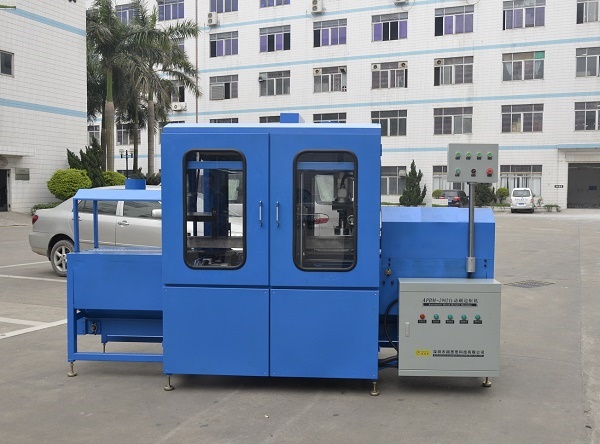

| name:Automatic Plate 4 Sides Frame Brushing Machine |
| Product information£º |
¢ñ¡¢FUNTION
Applies to: Width 38-170mm, Height 70-330 (mm) (specific to the buyer provide drawings), automatic 4 sides
frame brush plate border.
1¡¢Main features: all movements are driven by one main motor; all functions are mechanical device, without
the compressed air, without PLC program control, simple use and of high reliability.
2¡¢The equipment adopts manual assembly plate, synchronous and continuous conveying plate at the same time
the brush automatic brush light work, every movement is stable and reliable.
3¡¢The machine has the advantages of simple structure, convenient adjustment and brush replacement,
adjustment of the little parts, convenient replacement model.
4¡¢Environmental protection part of the whole and local seal, PVC central dust collection, meet the
requirements of environmental protection
¢ò¡¢THE DEVICE BASICALLY COMPOSED
1¡¢Collection system equipment configuration controller, main body, transmission mechanism, brushing
component, the material collecting device, waste collect system.
2¡¢Equipment configure quantity
£¨1£©Electric controller£º1
£¨2£©Main system£º1
£¨3£©Transmission mechanism£º1
£¨4£©Brush assembly£º3
£¨5£©Dust port£º4
3¡¢Device configuration (1£©Control cabinet: PLC, text display, solid state relays.
£¨2£© Main body: frame, steel, steel plate.
£¨3£©Transmission mechanism: Synchronous belt
£¨4£©Brush: brush wheel motor, optical components, a position adjusting mechanism.
£¨5£©Waste collection system: Waste guiding device, dust collection container, dust exhaust port.
£¨6£©Working procedure: artificial feeding¡ú top side brush¡úboth sides brush¡ú bottom side brush
¡ú artificial discharging into the box
¢ó¡¢EQUIPMENT SPECIFICATIONS INDEX REQUIREMENTS
1.Equipment Specifications Model: APBM-##03 (See the fellow list)
2.Brush plate size: Width 52-88mm£¨Belt width 50mm) H:70-150mm,(specifically plate should provide
the buyer drawings first)
3.Production speed: ¡Ý 300 pieces/min
4.The rejection rate:¡Ü 1. 0%, the premise of the buyer to provide the plates of the deformation
is not greater than 0.5mm.
5.Brush wheel: ¦Õ128X¦Õ16X10mm
6.External pumping dust interface size: ¦Õ148mm.
7. Brush motor specifications: gear motor power 0.75KW.
8.Power supply: Three phase AC380V¡À10% 50Hz
9. Total weight: 1.0 T
10. Equipment Dimensions (L x W x H mm): 2780*800*1800
11. Device color: gray and black.
12. Working hours: 24 hours continuous work properly. |
|
